Post by Gerrit » Sat Sep 19, 2020 5:40 pm

I just weighed one of the RGV legs and it weighs 4.0 kg, with oil (quantity unknown). So assuming your legs were weighed with oil, Jan, the difference with the ZX6 leg is 0.4 kg- and it's 0.8 kg lighter than the ZXR400H leg. It would be interesting to compare the wall thicknesses and lengths of the stanchion tubes and weights of various other parts to see where the difference of 0.4 kg comes from.
"Mine is a long and sad tale", said the mouse.
"Indeed it is", said Alice, looking at the mouse's tail.

User avatar
JanBros
Avgas Sniffer
Posts: 3183
Joined: Wed Jul 26, 2006 11:50 pm
Location: the land of Francorchamps
Contact:

Re: Hybrid project

Post by JanBros » Sat Sep 19, 2020 11:32 pm

zx6 was also weighted "ready to use".

like I already said : most of it comes from the steel inner legs.
I've got 2 set's of these forks, one I bought with a bended led. I've straightened inner leg's many times and it was obvious that less force was needed. so the gain is "double", as it's sprung weight.
My ultimate goal is to die young as late as possible !

User avatar
KR-1R
Premix Junkie
Posts: 1535
Joined: Wed May 16, 2007 2:24 am

Re: Hybrid project

Post by KR-1R » Sun Sep 20, 2020 12:07 pm

.
.
R6 fork leg is 3.967 kg, 735mm

Gerrit
Heavy Smoker
Posts: 431
Joined: Fri Jun 26, 2009 12:09 am
Location: Kingdom of the Netherlands

Re: Hybrid project

Post by Gerrit » Sun Sep 20, 2020 4:16 pm

From which model RGV is that leg, KR? vj23? It doesn't look much like my legs which are definitely vj22.

I stripped one leg and measured the ID of the stanchion tube, which is 37 mm. The OD is 41 mm which leaves a wall thickness of 2 mm. I don't think that can be safely reduced any further, so the weight advantage of the ZX6 forks is presumably caused by lighter internals.
"Mine is a long and sad tale", said the mouse.
"Indeed it is", said Alice, looking at the mouse's tail.

User avatar
JanBros
Avgas Sniffer
Posts: 3183
Joined: Wed Jul 26, 2006 11:50 pm
Location: the land of Francorchamps
Contact:

Re: Hybrid project

Post by JanBros » Sun Sep 20, 2020 5:18 pm

Gerrit wrote:
Sun Sep 20, 2020 4:16 pm
From which model RGV is that leg, KR? vj23? It doesn't look much like my legs which are definitely vj22.
he says it's from an R6 ;-)
My ultimate goal is to die young as late as possible !

Gerrit
Heavy Smoker
Posts: 431
Joined: Fri Jun 26, 2009 12:09 am
Location: Kingdom of the Netherlands

Re: Hybrid project

Post by Gerrit » Sun Sep 20, 2020 6:23 pm

OOPS, I misread RG!!!!!!!!!
"Mine is a long and sad tale", said the mouse.
"Indeed it is", said Alice, looking at the mouse's tail.

Gerrit
Heavy Smoker
Posts: 431
Joined: Fri Jun 26, 2009 12:09 am
Location: Kingdom of the Netherlands

Re: Hybrid project

Post by Gerrit » Thu Nov 05, 2020 5:31 pm

Minor update: I had five shallow grooves cut into the top of the upper tubes at 5 mm spacing to aid in adjusting ride height at the front end:


They will now be sent off for re-anodising.
"Mine is a long and sad tale", said the mouse.
"Indeed it is", said Alice, looking at the mouse's tail.

Gerrit
Heavy Smoker
Posts: 431
Joined: Fri Jun 26, 2009 12:09 am
Location: Kingdom of the Netherlands

Re: Hybrid project

Post by Gerrit » Sat Nov 21, 2020 11:23 pm

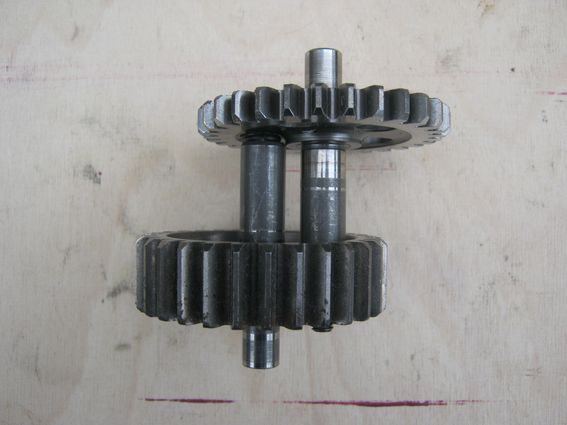

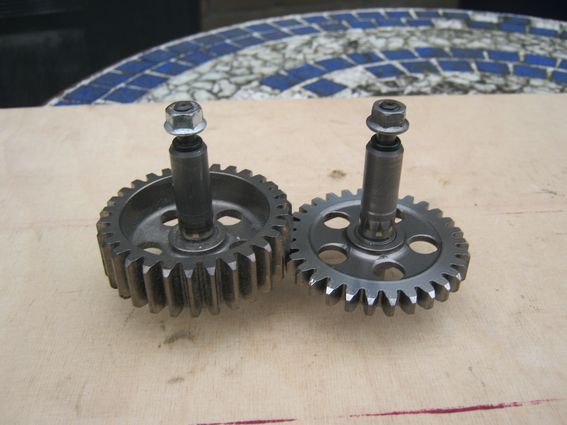

As I won't be using the oil pump the water/oil pump drive gear was cut down in width to 7 mm. The standard gear weighs 246 g, the modified gear 152 g.


"Mine is a long and sad tale", said the mouse.
"Indeed it is", said Alice, looking at the mouse's tail.
